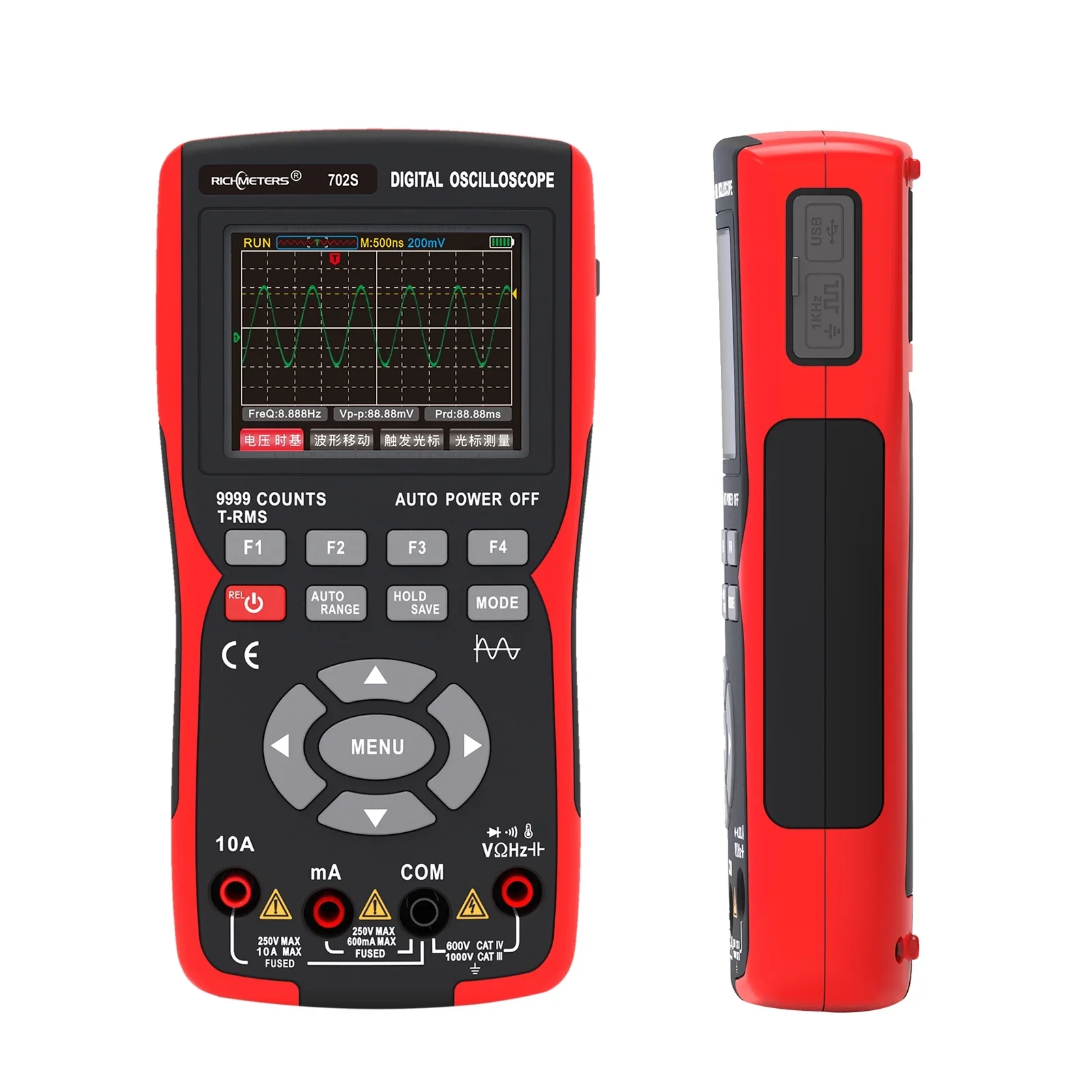

Oscilloscope Multimeter Handheld LCD Digital Multimeter & Oscillometer 2-in-1 Universal Meter Scope Meter 9999 Counts 10MHz 48MSa/s Single Channel Measuring AC/DC Voltage & Current Resistance

is 9999 counts.



Specifications:

Material: ABS+TPE

Display (LCD): 9999 counts

Ranging: Auto/Manual

Update Rate: 3 Times/Second

Ture RMS: Yes

Data Hold: Yes

Backlight: Yes

Low Battery Indication: Yes

Auto Power Off: 15/30/60/120 minutes, and no limit

Operating Temperature: 0~40��

Operating Humidity: <75%

Storage Temperature: -20~60��

Storage Humidity: ��80%

Battery: Built-in 3.7V 2000mAh rechargeable battery

Item Size: 177 * 89 * 40mm / 6.97 * 3.50 * 1.57in

Item Weight: 352g / 12.43oz

Package Weight: 701g / 24.75oz

Package Size: 26 * 13.3 * 6.5cm / 10.24 * 5.24 * 2.56in

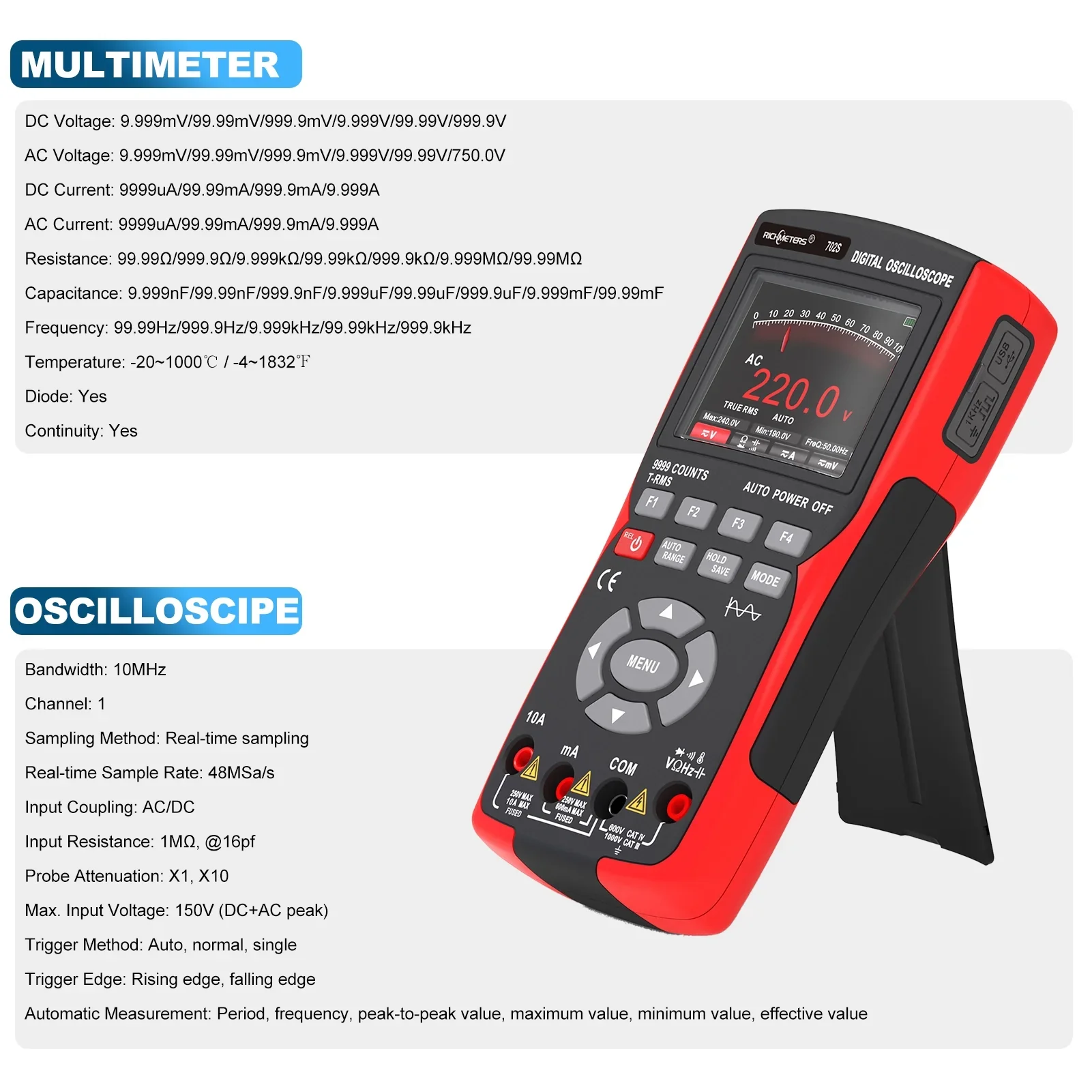

MULTIMETER:

DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V

AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V

DC Current: 9999uA/99.99mA/999.9mA/9.999A

AC Current: 9999uA/99.99mA/999.9mA/9.999A

Resistance: 99.99��/999.9��/9.999k��/99.99k��/999.9k��/9.999M��/99.99M��

Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz

Temperature: -20~1000�� / -4~1832�H

Diode: Yes

Continuity: Yes



OSCILLOSCIPE:

Bandwidth: 10MHz

Channel: 1

Sampling Method: Real-time sampling

Real-time Sample Rate: 48MSa/s

Input Coupling: AC/DC

Input Resistance: 1M��, @16pf

Probe Attenuation: X1, X10

Max. Input Voltage: 150V (DC+AC peak)

Automatic Measurement: Period, frequency, peak-to-peak value, maximum value, minimum value, effective value

Trigger Method: Auto, normal, single

Trigger Edge: Rising edge, falling edge



Package List:

1 * Oscilloscope Multimeter

1 * Pair of Test Lead

1 * Temperature Probe

1 * Oscillometric Probe

1 * Type-C Cable

1 * Zipper Bag

1 * Manual (English)

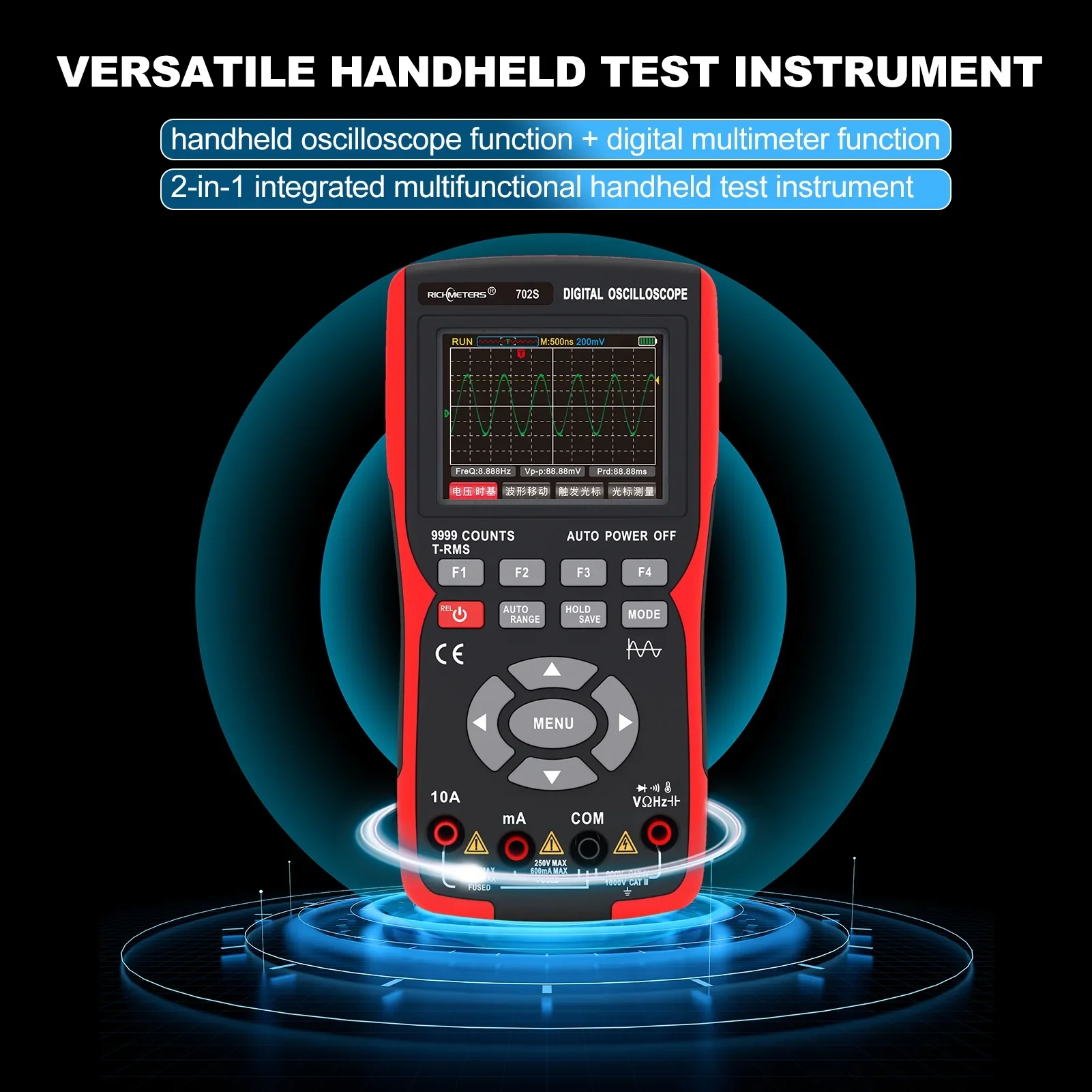

• Versatile Handheld Test Instrument: handheld oscilloscope function + digital multimeter runction, 2-in-1 integrated multifunctional handheld test instrument. One key switch easy to operation, suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.
• Digital Oscilloscope Main Function: single channel input, 10MHz bandwidth, 48MSa/s real-time sampling rate. Multiple automatic measurement functions; Auto, normal, and single, 3 trigger methods; 150V(DC+AC peak) max. input voltage; Automatically identify the waveform type (sine or square wave) and adjust the control method to accurately display the waveform of the input signal.
• Digital Handheld Multimeter: auto/manual ranging 9999 counts true RMS multimeter can be used to measure AC/DC voltage & current, resistance,, capacitance, frequency, temperature, continuity and diode test.
• Save & View Waveforms: by pressing the hold&save button to save the current measured waveform data, and save it in the flash with a serial number in the form of a picture. Connect the oscilloscope to the computer with the Type-C data cable, click the USB disk, open the pic folder to view, or download the waveform to the computer for easier analysis.

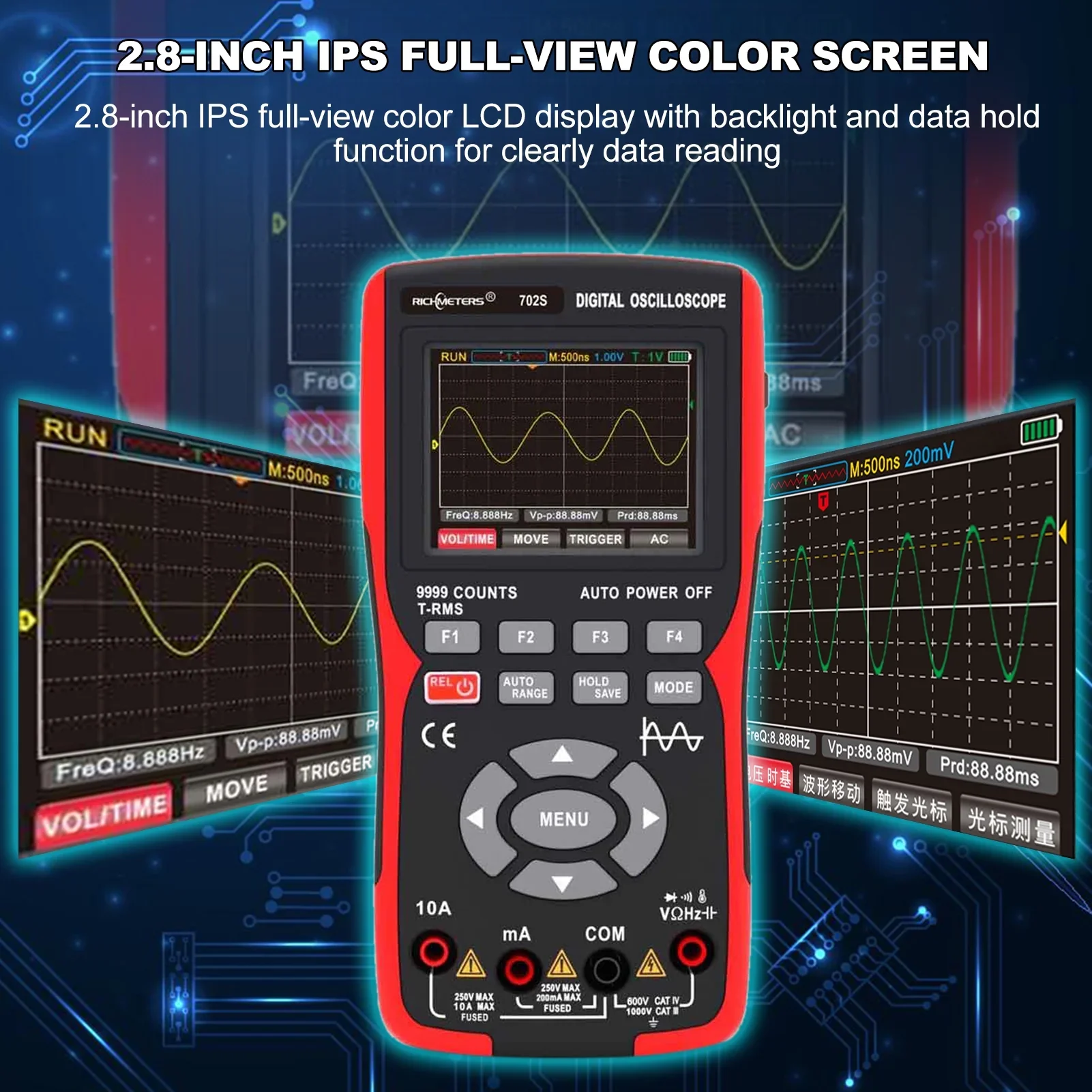

• User-friendly Design: 2.8-inch IPS full-view color LCD display with backlight and data hold function for clearly data reading. Small compact size is suitable for single hand operating and portable to carry with. With a bracket on the back, convenient to place it on the table and read the values.
